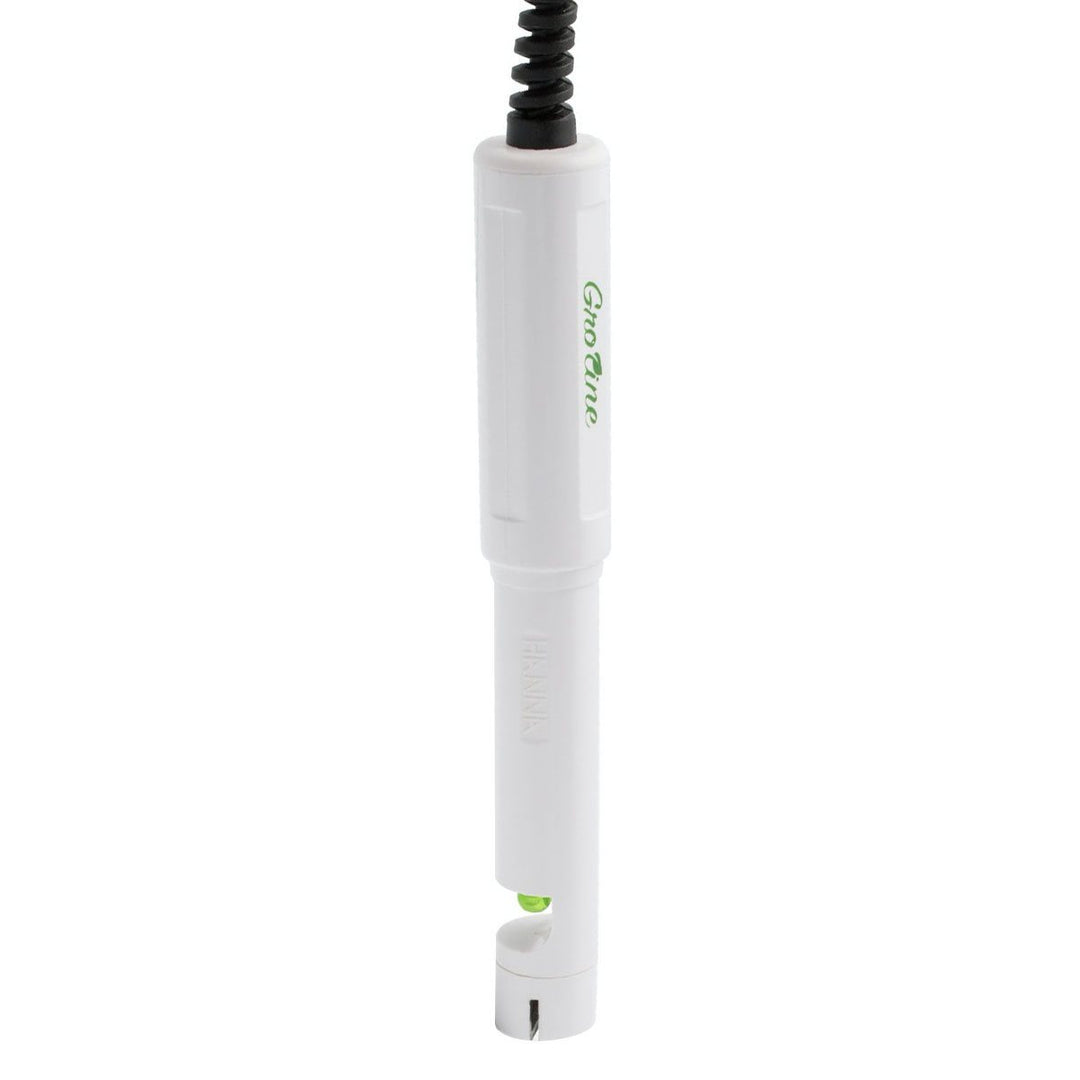

The HI1285-5 is a 3-in-1 pre-amplified multiparameter probe that measures pH, EC/TDS, and temperature within a single polypropylene body. The pH portion of this probe is constructed with a cloth junction, maintenance-free polymer gel electrolyte, and a low-temperature glass sensing bulb. The EC/TDS portion of this probe utilizes two stainless steel pins for an amperometric determination of conductivity and total dissolved solids. A built-in temperature sensor ensures that both pH and EC/TDS readings are compensated for temperature variations in both standards and samples. The design consideration for the HI1285-5 is ideal for measuring the pH, EC/TDS, and temperature in greenhouses, hydroponics, environmental monitoring, water treatment, and boilers and cooling towers. The HI1285-5 is designed for use with Hanna’s HI9813-5, HI9812-5, and HI9811-5 portable multiparameter meters.
Pre-amplified pH electrode
Amperometric EC/TDS sensor
Built-in temperature sensor
Specifications
Range: 0 to 13 pH, EC
Junction: Cloth
Electrolyte: Gel
Body: Polypropylene
Tip: Spheric, 0.3" (8 mm)
Matching Pin: No
Max Pressure: 0.1 bar
Operating Temperature: 32 to 122°F (0 to 50°C)
Temperature Sensor: Yes
Cable: 7-pole, 6.6' (2 m)
Connector: DIN
Amplifier: Yes
