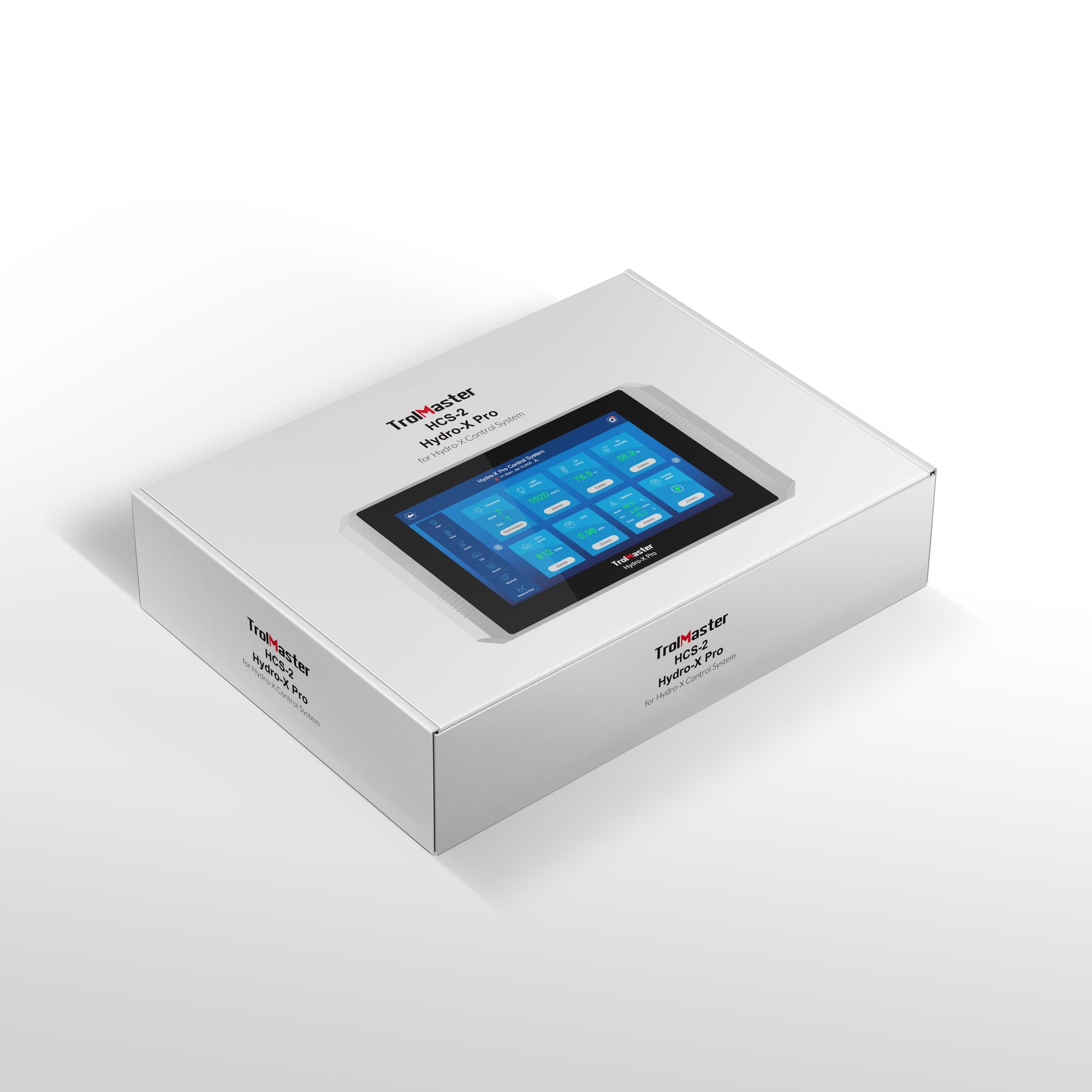

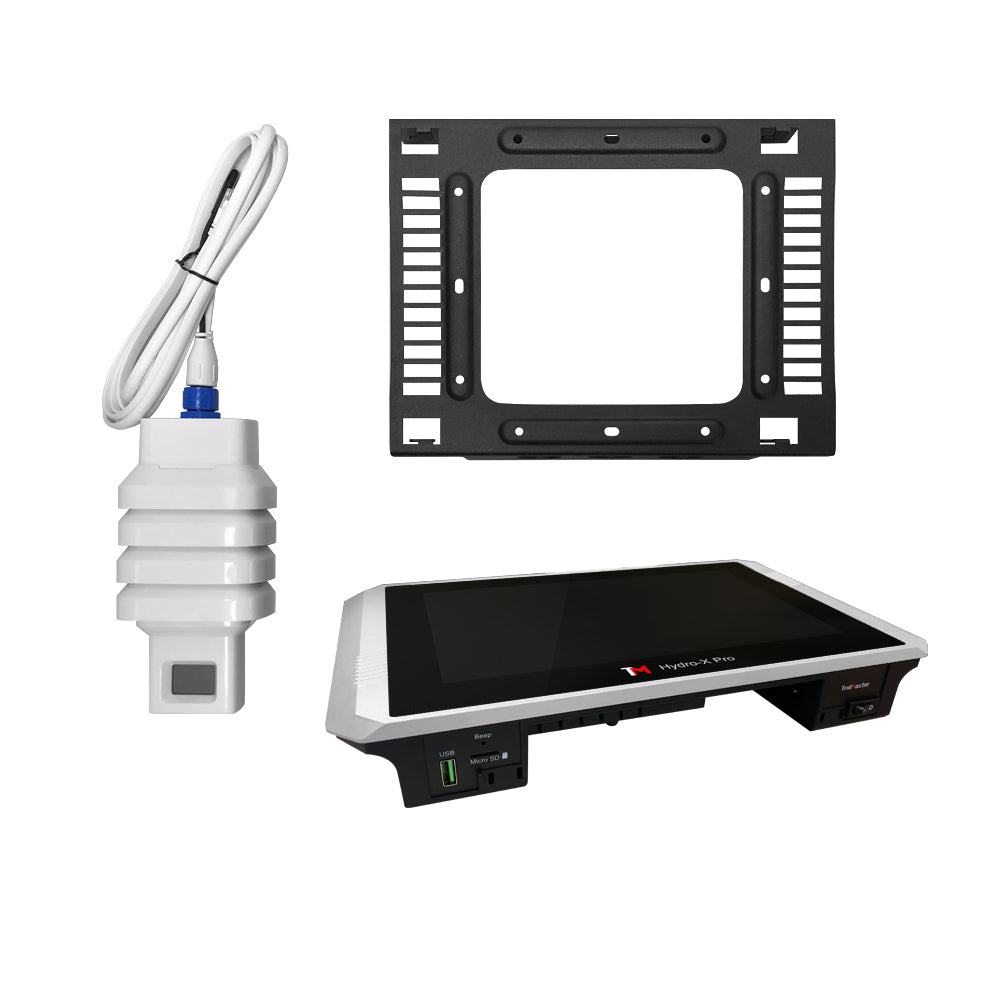

TrolMaster Hydro-X Pro HCS-2 Environmental Control System

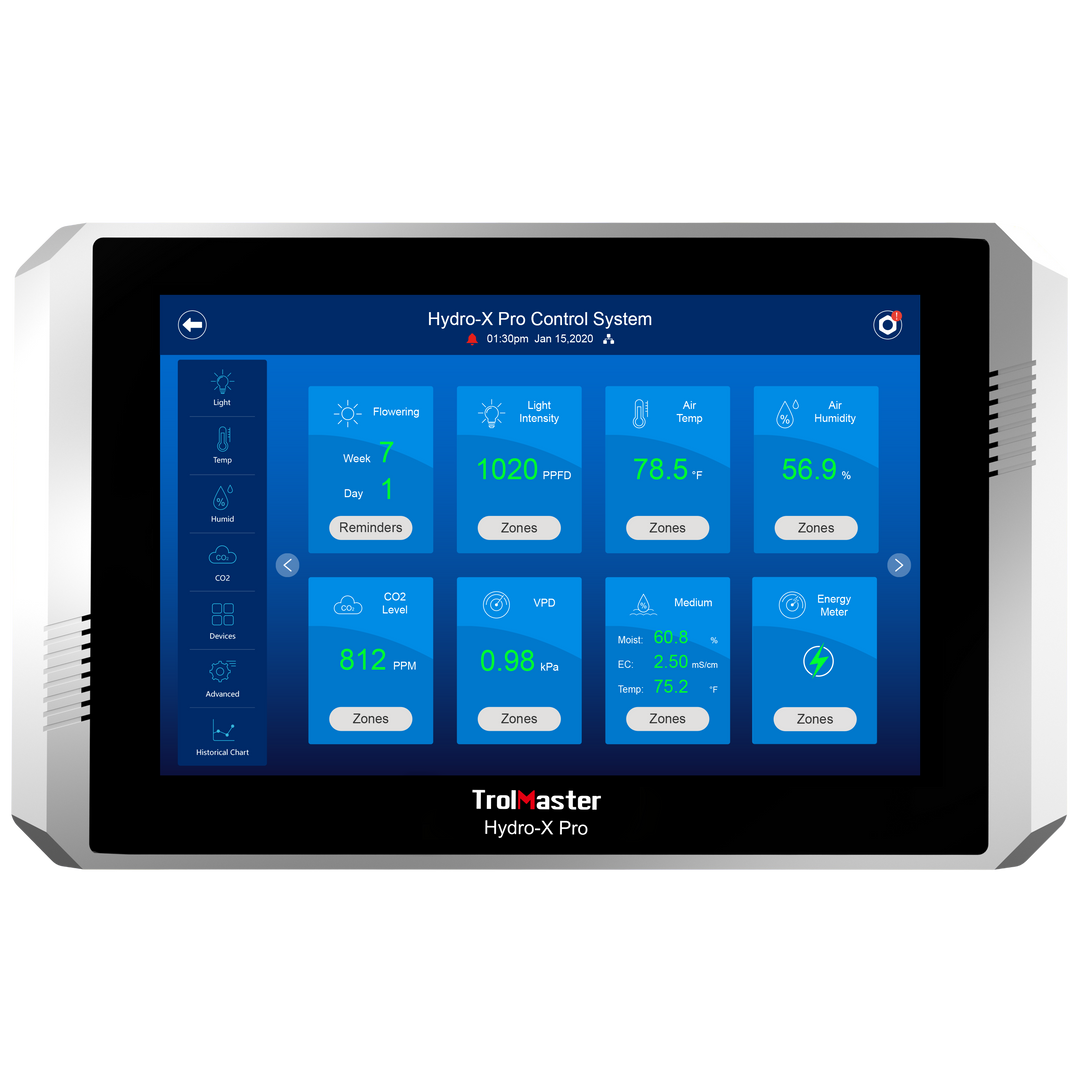

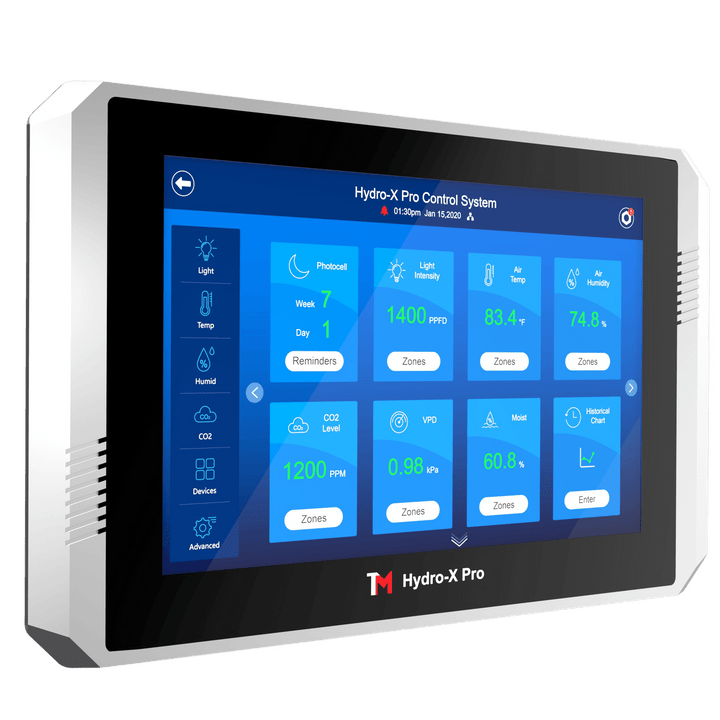

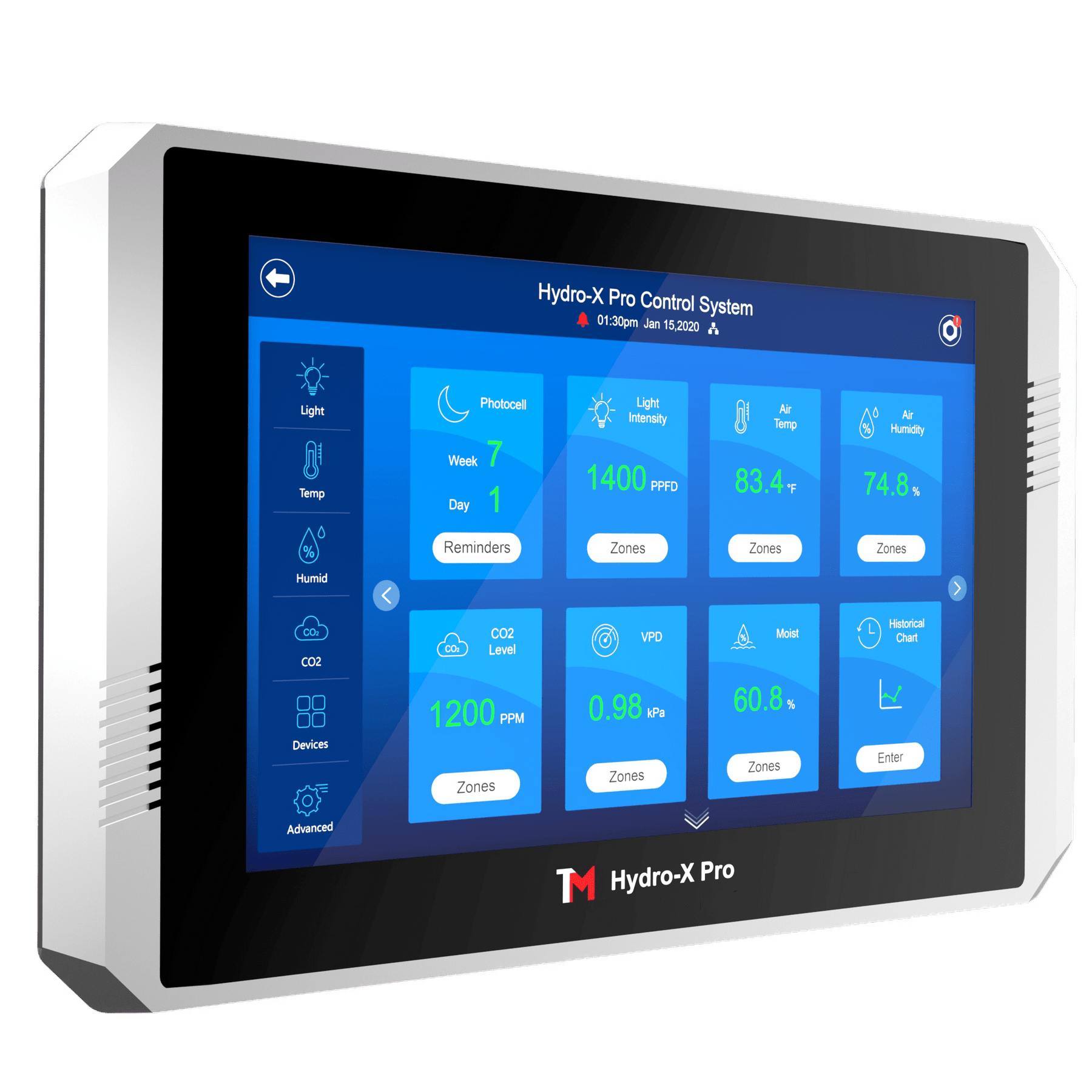

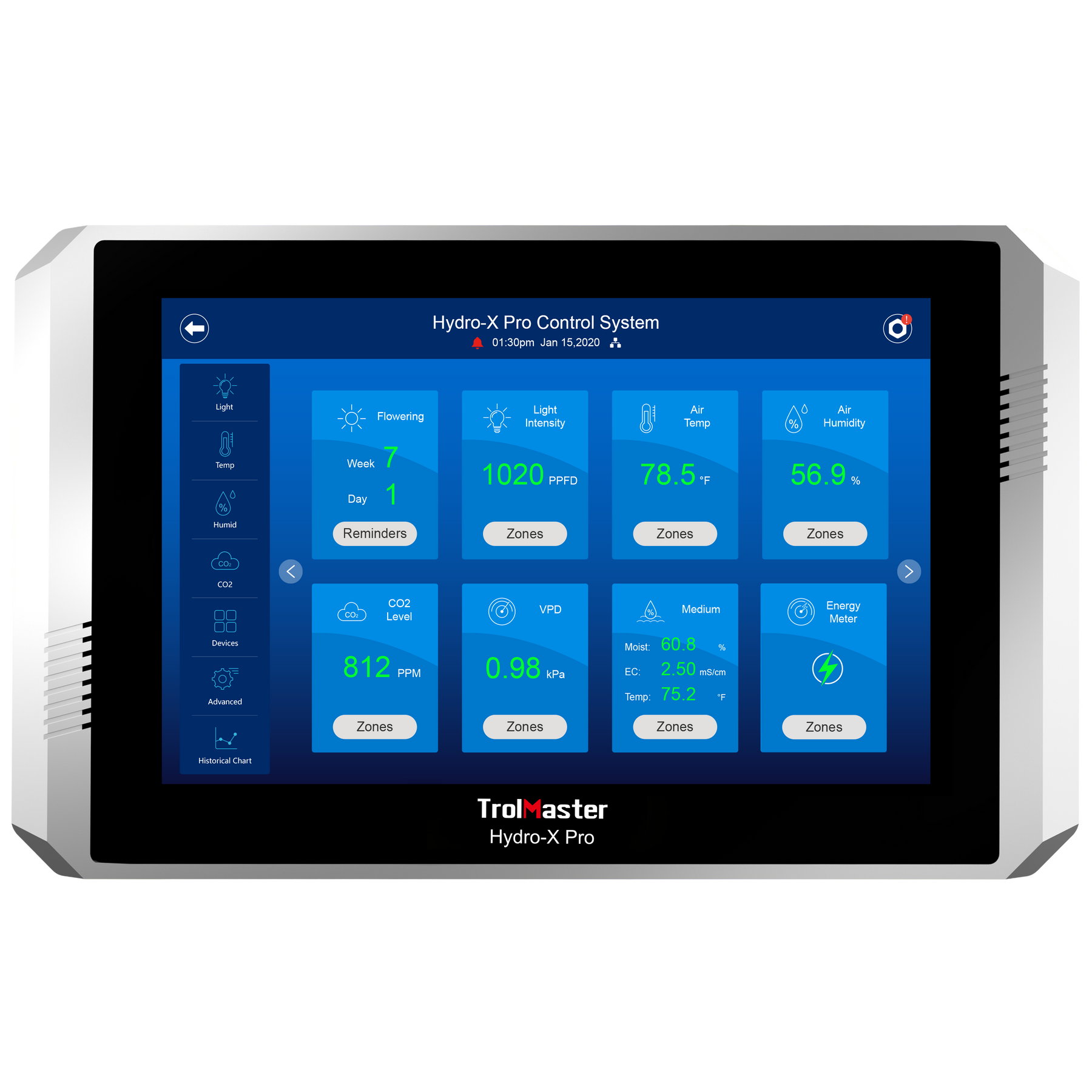

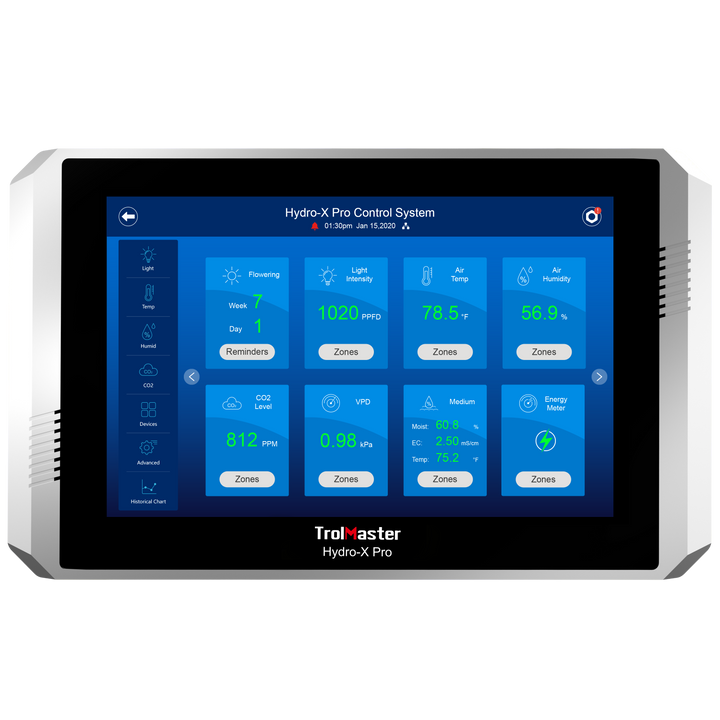

• 10.1" Touchscreen Display – Large, intuitive interface for centralized system management
• Up to 50 Sensors & 50 Control Modules – Designed for large and complex cultivation environments
• Multi-Zone Environmental Control – Assign sensors and equipment to specific areas or control strategies
• Temperature, Humidity & CO₂ Control – Centralized management of critical grow room conditions
• Advanced Lighting Control – Manage multiple lighting zones, schedules and dimming strategies
• Up to 10 Lighting Groups – Organize and control different lighting zones independently
• Remote Monitoring & Control – Access environmental data and system settings remotely
• Expandable Modular Platform – Add sensors and control modules as your facility grows
• Data Logging & Alerts – Monitor environmental trends and receive notifications when conditions move outside your desired range

• Model: HCS-2
• Product Series: Hydro-X Pro
• Controller Type: Professional Environmental Control System
• Display: 10.1-inch LED touchscreen
• Maximum Sensors: Up to 50
• Maximum Control Modules: Up to 50
• Lighting Channels: 2 – Line 1 & Line 2
• Lighting Groups: Up to 10 groups
• Environmental Control: Temperature, Humidity, CO₂ & Lighting
• Temperature Setting Range: 40°F–100°F
• Humidity Setting Range: 20–99% RH
• CO₂ Control: Adjustable PPM control
• Light Intensity Setting: 10–2000 PPFD
• Remote Control: TrolMaster App & Web-Based Software
• Connection: RJ12 Daisy-Chain

• HCS-2 User manual
• HCS-2 Cutsheet
• HCS-2 Comparison chart
• HCS-2 Tutorial videos
• HCS-2 Firmware update

What can the TrolMaster Hydro-X Pro HCS-2 control?
The HCS-2 can centrally manage temperature, humidity, CO₂, lighting and other compatible grow room equipment using TrolMaster sensors, device stations and control modules. Its modular design makes it suitable for advanced grow rooms and commercial cultivation facilities.

How many sensors and control modules can the HCS-2 support?
The Hydro-X Pro supports up to 50 sensors and 50 control modules in combination, allowing large cultivation facilities to build highly customized environmental control systems.

Can the HCS-2 control multiple zones within the same grow room?
Yes. The HCS-2 supports multiple environmental sub-zones by assigning specific sensors to specific control functions or equipment. This allows different HVAC systems, dehumidifiers or other devices to respond to conditions measured in different areas of the grow room.

Can the HCS-2 control multiple air conditioners and dehumidifiers independently?
Yes. With compatible TrolMaster control modules, multiple HVAC units and dehumidifiers can be controlled independently. This allows growers to create staged control strategies instead of operating all environmental equipment simultaneously.

How many lighting zones can the HCS-2 control?
The HCS-2 features two independent lighting channels (Line 1 and Line 2) and supports up to 10 lighting groups with compatible TrolMaster lighting adapters. Different groups can be configured with independent lighting settings and schedules.

Can I use multiple MBS-PRO sensors with the HCS-2?
Yes. Multiple MBS-PRO sensors can be installed throughout the grow room. Sensor readings can be used together or assigned separately to specific equipment, helping provide more representative environmental monitoring and enabling sub-zone control.

Can the Hydro-X Pro HCS-2 be monitored remotely?
Yes. The HCS-2 supports remote monitoring and control through the TrolMaster smartphone app and web-based control platform, allowing growers to monitor environmental conditions and manage compatible equipment remotely.
